2. Institute of Chinese Materia Medica, China Academy of Chinese Medical Sciences, Beijing 100700, China
The analysis on Chinese materia medica(CMM)is a challenge for modern liquid chromatography(LC)technology,since there are a lot of compounds in CMM. The rapid analysis and separation of polar compounds are hot research areas in analysis of CMM(Liang et al,2009; Toyo’oka,2008). Usually,analytical time for CMM is long(more than 30 min)due to the complex compounds in it. Therefore,several new LC column techniques such as sub 2 μm column had been applied in the analysis of CMM(Toyo’oka,2008). However,high backpressures of sub 2 μm column restrict their applications on conventional LC system. Recently,Poroshell column was proved as a rapid LC separation technology with low backpressures, and was applied in the quality control of CMM(Du et al,2011; Deng et al,2011). However,the previous reports were mainly focused on the analysis of less polar compounds by conventional reverse phase material Poroshell column(Du et al,2011; Deng et al,2011; Song et al,2013),which is difficult to separate the polar compounds. Fortunately,some special reverse phase columns such as SB Aq column are ideal for the separation of polar components in CMM with high ratio of aqueous mobile phases(Qian et al,2008; Yang et al,2010).
Ophiocordyceps sinensis(Berk.)is a well-known CMM,which has been used as a tonic in China for hundreds of years. The nucleosides were believed as one kind of the major active components in O. sinensis(Li et al,2006). In previous studies,many LC methods for analysis of nucleosides were reported,which included high performance liquid chromatography- diode array detection(HPLC-DAD)(Li et al,2006),HPLC- mass spectrometry(HPLC-MS)(Yang et al,2010; Li et al,2006), and ultra-performance liquid chromatography(UPLC)(Yang et al,2007). However,those methods mentioned above have disadvantages such as long analysis time or need of expensive LC system.
Therefore,a rapid HPLC analysis method for the determination of six nucleosides(uracil,uridine,inosine,guanosine,adenosine, and cordycepin)in O. sinensis on a Poroshell 120 SB Aq column(50 mm × 4.6 mm,2.7 µm)by conventional HPLC system was developed in the present paper, and applied in O. sinensis samples.
2. Materials and methods 2.1 MaterialsThe samples of Ophiocordyceps sinensis were collected from Qinghai,Sichuan provinces, and Tibet Autonomous Region, and purchased from market of Guangdong province. The botanical origin of materials was identified by the correspondence author. The voucher specimens were deposited at HEC R&D Center,Dongguan,Guangdong,China.

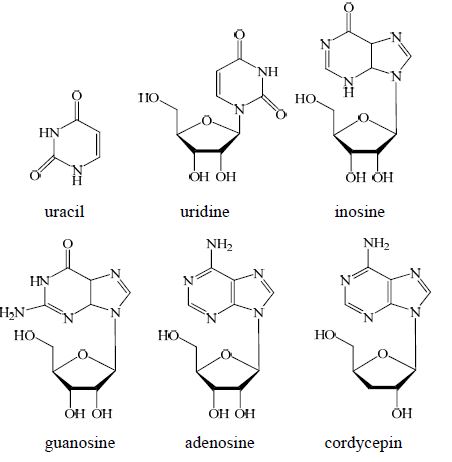

Uridine,guanosine, and adenosine were obtained from Jinjinle Company(Shanghai,China). Uracil,inosine, and cordycepin were purchased from the National Institute for Food and Drug Control(Beijing,China). The purity of each compound was more than 98% and determined by HPLC. The chemical structures of these reference compounds are shown in Figure 1. Acetonitrile was of HPLC-grade from Merck(USA). Formic acid was purchased from Aladdin(Shanghai,China) and deionized water was purified by a Milli-Q Purification System(Millipore,USA).
All separations were performed on an Agilent Series 1260(Agilent Technologies,USA)liquid chromatograph,equipped with a vacuum degasser,a quaternary pump,an autosampler, and a diode array detection(DAD)system,connected to an Agilent OpenLab software.
2.3 HPLC analysis 2.3.1 Preparation of sample solutionThe dried powder of samples(0.2 g)was suspended in 30 mL water,ultrasonically extracted for 30 min, and then cooled at room temperature; Water was added to compensate for the lost weight. The sample solution was filtered through a 0.45 µm membrane(Ameritech,Tianjin,China)prior to HPLC.
2.3.2 HPLC conditionsAll separations were performed on an Agilent Poroshell 120 SB Aq Column(50 mm × 4.6 mm,2.7 µm). The column temperature was maintained at 30 oC. The samples and reference compounds were separated using a gradient mobile phase consisting of 0.1% formic acid water solution(A) and acetonitrile(B). The gradient condition is: 0−3 min,0% B; 3−8 min,0−5% B; 8−10 min,5%−7% B; 10−13 min,7%−20% B; 13−15 min,20% B. The flow rate was set at 0.4 mL/min. The UV detection wavelength was set at 260 nm and the injection volume was 2 µL.
2.3.3 Calibration curvesUridine(33.44 mg),inosine(36.86 mg),guanosine(34.10 mg), and adenosine(33.34 mg)were accurately weighed,added to 100 mL volumetric flask, and diluted to the scale line with water to obtain stock solution 1. Uracil(20.04 mg) and cordycepin(20.06 mg)were accurately weighed,added to 100 mL volumetric flask, and diluted to the scale line with water to obtain stock solution 2. Stock solution 3 was obtained by accurately adding 10 mL stock solution 1 and 1 mL stock solution 2 to 20 mL volumetric flask and diluting to the scale line with water.
Stock solution 3 was diluted to appropriate concentration for construction of calibration curves. At least six kinds of concentration of the solution were analyzed, and then the calibration curves were constructed by plotting the peak area versus the concentration of each reference compound.
2.3.4 Limits of detection and quantificationThe stock solution 3 containing six reference compounds was diluted to a series of appropriate concentration with water, and an aliquot of the diluted solutions was injected into HPLC for analysis. The limits of detection(LOD) and quantification(LOQ)under the present chromatographic conditions were determined at a signal-to-noise ratio(S/N)of about 3 and 10,respectively.
2.3.5 PrecisionIntra- and inter-day variations were chosen to determine the precision of the developed HPLC method. For intra-day variability test,the mixed st and ard solution(uracil,uridine,inosine,guanosine,adenosine, and cordycepin as 1.002,16.72,18.43,17.05,16.67, and 1.003 μg/mL)was analyzed for six replicates within one day,while for inter-day variability test,the solution was examined in duplicates for consecutive 3 d. Variations were expressed by relative st and ard deviation(RSD).
2.3.6 AccuracyThe recovery was used to evaluate the accuracy of the method. The mixed st and ard solution(1 mL,including uracil,uridine,inosine,guanosine,adenosine, and cordycepin as 2.738,100.32,62.53,68.87,34.21, and 2.513 μg/mL) and 14 mL of water were accurately added into a certain amount(0.1 g)of O. sinensis sample. The mixture was extracted and analyzed using the method mentioned above. Six replicates were performed for the test.
2.3.7 RepeatabilityTo confirm the repeatability,six replicates of the same sample were extracted as “2.3.1” and analyzed as “2.3.2” above. The RSD value was calculated as a measurement of method repeatability.
3. Results and discussion 3.1 Optimization of extraction conditionAs the analytes are polar compounds,the water was chosen as extract solvent. Then two common-used extraction methods(ultrasonic extraction and refluxing extraction)were compared, and the result showed that the ultrasonic extraction was better. In order to obtain the effective ultrasonic extraction conditions,the extraction time, and solvent volume were studied by univariate approach. The results were found that using 30 mL water and extracting for 30 min would give satisfactory extraction efficiency of sample.
3.2 Optimization of HPLC conditionsDifferent compositions of mobile phase were tried. As a result,0.1% formic acid water solution and acetonitrile was chosen as the eluting solvent system to give the desired separation within the running time of 12 min. The different column temperatures(25,30, and 35 oC)were also tested. The temperature has no significant effect on the separation of analytes, and 30 oC was used as column temperature. The detection wavelength was set at 260 nm based on the maximum UV absorption of analytes.
3.3 Validation of methodThe linearity,regression, and linear ranges of six analytes were determined using the developed HPLC method. The correlation coefficient values(r > 0.999)indicated appropriate correlations between the investigated compound concentrations and their peak areas within the tested range(Table 1). The LOD and LOQ were less than 0.18 and 0.46 μg/mL, and the overall intra- and inter-day variations(RSD)of the six analytes were less than 0.8% and 2.1%,respectively. The developed method had good accuracy and repeatability. The recoveries were between 95% and 103%(RSD < 3.8%), and the overall repeatability(RSD)was less than 3.7%(Tables 2 and 3).

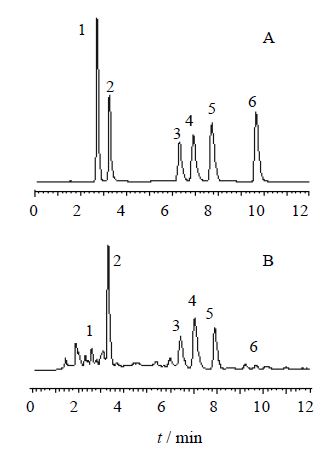

This newly validated HPLC method was subsequently applied to simultaneous determination of the six polar components in O. sinensis samples. The analytical time of the new developed HPLC methods is less than 12 min,while more than 30 min was usually taken in the precious reports. The typical chromatograms of reference compounds and O. sinensis are shown in Figure 2, and their contents are listed in Table 4. The results showed that uridine,inosine,guanosine, and adenosine were the major nucleosides in O. sinensis,while the cordycepin was the component with lower content. These results were agreed with the previous reports,cordycepin was the major component in Cordyceps militaris and difficult to be found in O. sinensis by HPLC-UV methods. Furthermore,the contents of the investigated analytes in the different samples were variants. The content of adenosine in sample 3(Qinghai)was 0.37 mg/g and that of sample 2(Tibet)was 0.95 mg/g,which might be induced by the different growing conditions of O. sinensis in Qinghai Province and Tibet Autonomous Region. The contents of inosine,guanosine, and adenosine in sample 5 were the lowest,which might relate with poor processing or storage conditions.
In this study,a rapid method for the determination of six nucleosides in O. sinensis by conventional HPLC system is developed and applied to real samples. The results show that Poroshell SB Aq column can provide a rapid for the polar compounds in CMM by conventional HPLC system, and the developed method is helpful to the quality control of O. sinensis.
[1] | Deng JW, Fan CL, Yang YY, 2011. Identification and determination of the major constituents in Deng’s herbal tea granules by rapid resolution liquid chromatography coupled with mass spectrometry. J Pharmaceut Biomed. 56: 928-936. |
[2] | Du G, Zha HY, Song YL, Zhang QW, Wang YT, 2011. Rapid simultaneous determination of isoflavones in Radix Puerariae using high performance liquid chromatography-Triple quadrupole mass spectrometry with novel shell-type column. J Sep Sci 34: 2576-2585. |
[3] | Huang LF, Guo FQ, Liang YZ, Chen BM, 2004. Determination of adenosine and cordycepin in Cordyceps sinensis and C. militarris with HPLC-ESI-MS. Chin J Chin Mate Med. 29: 762-764. |
[4] | Ikeda R, Nishimura M, Sun Y, Wada M, Nakashima K, 2008. Simple HPLC-UV determination of nucleosides and its application to the authentication of Cordyceps and its allies. Biomed Chromatogr 22: 630-636. |
[5] | Li SP, Yang FQ, Tsim KWK, 2006. Quality control of Cordyceps sinensis a valued traditional Chinese medicine. J Pharmaceut Biomed 41: 1571-1584. |
[6] | Liang XM, Jin Y, Wang YP, Jin GW, Fu Q, Xiao YS, 2009. Qualitative and quantitative analysis in quality control of traditional Chinese medicines. J Chromatogr A 1216: 2033-2044. |
[7] | Qian ZM, Wan JB, Zhang QW, Li SP, 2008. Simultaneous determination of nucleobases, nucleosides and saponins in Panax notoginseng using multiple columns high performance liquid chromatography. J Pharmaceut Biomed 48: 1361-1367. |
[8] | Song YT, Funatsu T, Tsunoda M, 2013. Amino acid analysis using core-shell particle column. J Chromatogr B 927: 214-217. |
[9] | Toyo’oka T, 2008. Determination Methods for biologically active compounds by ultra-performance liquid chromatography coupled with mass spectrometry: Application to the analyses of pharmaceuticals, foods, plants, environments, metabonomics, and metabolomics. J Chromatogr Sci 46: 233-247. |
[10] | Yang FQ, Guan J, Li SP. 2007. Fast simultaneous determination of 14 nucleosides and nucleobases in cultured Cordyceps using ultra-performance liquid chromatography. Talanta 73: 269-273. |
[11] | Yang FQ , Li DQ, Feng K , Hu DJ , Li SP , 2010. Determination of nucleotides, nucleosides and their transformation products in Cordyceps by ion-pairing reversed-phase liquid chromatography- mass spectrometry. J Chromatogr A 1217: 5501-5510. |
